VIGI C340 4MM 4MP Outdoor Full-Color WiFi Bullet Network Camera - TP-Link

VIGI C340 4MM 4MP Outdoor Full-Color WiFi Bullet Network Camera  - TP-Link

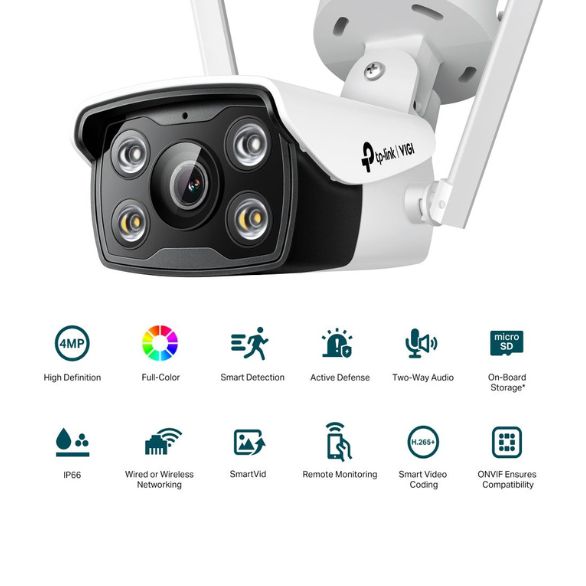

- 4MP High Definition: The camera comes with 4MP–more than enough pixels to pick up some of the more discrete details.
- 24h Full-Colour: Obtain 24-hour colour details, even in pitch-black conditions, via high-sensitivity sensor and included spotlight LEDs.
- Wireless Outdoor Connection: Simple and quick deployment with Wi-Fi signals.
- Waterproof: Reliable IP66 for stable outdoor performance.
- Smart Detection (human detection, motion detection, area intrusion, line-crossing, video tampering): Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, or obstructs the camera.
- H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.

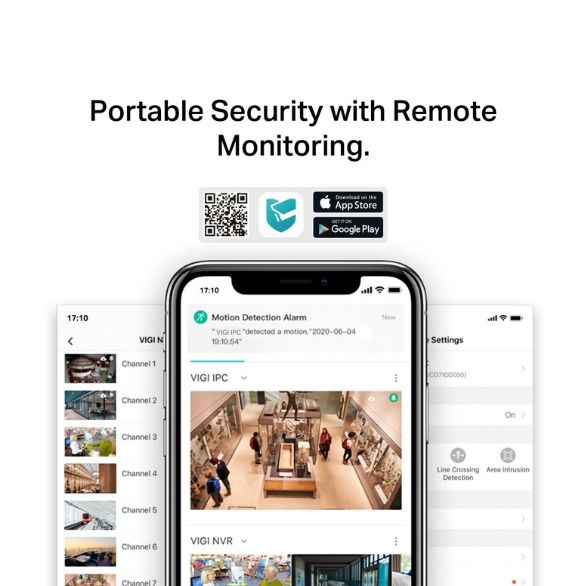

- VIGI App: Manage your security from the palm of your hand with the VIGI app.

All The Colours,
All The Time

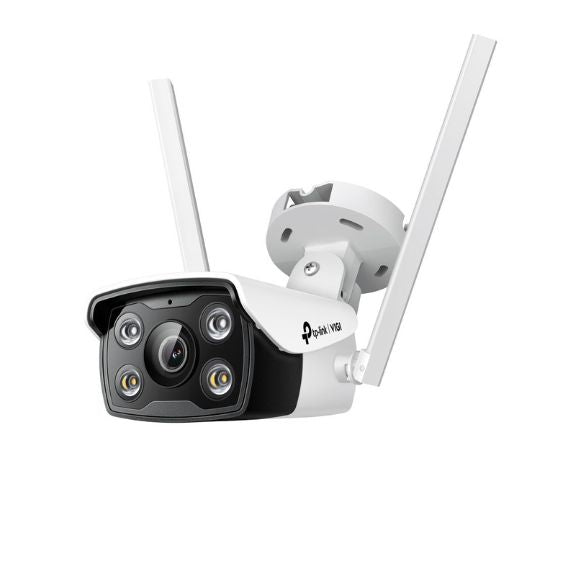

4MP Outdoor Full-Colour Bullet Camera
VIGI C340-W-4

Features:
Outdoor Wi-Fi Connection, Simple Wiring:
- Just power up your camera, then the transmission starts by its 2 x 2 MIMO antennas. Waterproof hardware protection stable performance in outdoor scenarios.
Clarity and Colours, All in One:
- Monitor 24-hour clear and colourful details even in pitch dark night. VIGI C340-W provides maximum 4MP resolutions and ensures colourful monitoring with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.
We keep an eye on your business. Smart Detection:
- Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, or obstructs the camera.
1) Motion Detection: Get instant notifications when your camera detects motion.
2) Area Intrusion: Set customized activity zones around key areas for more focused monitoring.
3) Line-Crossing: Set a boundary and receive an alert anytime a person crosses it from either or both directions.
4) Camera Tampering: Receive alerts when someone obstructs the camera.
Active Defense:
- Warn potential intruders instantly with sound and light when abnormal events.
Every Event is Under Your Control:
- VIGI camera intelligently detects activities, inform you instantly and response automatically by smart detection and two-way audio.
Never miss a detail. SmartVid-Smart Video Enhancement:
- Smart IR: Keeps objects from being under-rendered when far away or overexposed when close to camera at night.
- Wide Dynamic Range: Adjusts for lighting contrast to minimize shadowing effects and renders images true to life.
- 3D DNR: Removes abnormal pixelation to provide clearer video and eliminate distortion.
More compression. More savings. Same quality:
- Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
(Please note that calculations are based on laboratory testing using a 3MP VIGI camera, and an actual performance may vary according to the amount of activity recorded, resolution and other variables.)
Flexible Management and Storage:
- Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manger. Local storage is available for each method, as well as on-board storage with SD card slot (up to 256 GB). (The Micro-SD card is not included in package).
Flexible Installation:
Find the perfect vantage point by simply securing your camera to ceiling, pole or wall.
One system. Full security. Run your business with peace of mind:
- The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you’ve worked hard to build — whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.

Notes:
1) Micro-SD card is not included in the package.
2) Camera supports up to 256GB Micros-SD card.
3) Only use Class 10 or higher Micro-SD card in the camera.

Specifications:
NETWORK
- Security: Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
- Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
- Wireless Rate: 11Mbps (802.11b), 54Mbps (802.11g), 150Mbps (802.11n)
- Frequency: 2.4GHz
- Wireless Security: WPA/WPA2-PSK
- API: ONVIF
- Simultaneous Live View: 3 Main Streams and 3 Sub-Streams
GENERAL
- Operating Temperature: -30 Degree Celsius – 60 Degree Celsius
- Certifications : CE, RCM, BSMI, VCCI, RoHS, NTRA, KC
- General Features: Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening
- Power Supply: 12V DC ± 5%, 5.5mm Coaxial Power Plug
- Power Consumption: 12V DC: Max 7W
CAMERA
- Image Sensor: 1/3” Progressive Scan CMOS
- Lens: Fixed focal lens (4 mm)
- Aperture (4 mm): F1.6
- Lens Mount: M12
- Viewing Angle (4mm):
a) Horizontal FOV: 79 degree
b) Vertical FOV: 43 degree
c) Diagonal FOV: 93 degree
- Day/Night Mechanism: IR Cut Filter
- IR Working Distance: 30m
- Illumination Distance: 30m
- Minimum Illumination: 0 lux with IR/white Light
- Weatherproof Rating: IP66
- Digital Noise Reduction: 3D DNR
- WDR: DWDR
VIDEO/IMAGE
- Video Compression:
a) Main stream: H.265+/H.265/H.264+/H.264
b) Sub-Stream: H.265/H.264
- Frame Rate and Resolutions:
1/ Main Stream:
a) Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
b) Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080
2/ Sub-Stream:
a) Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
b) Resolution: 640x480, 352x288, 320x240
- Video Streaming: Main Stream, Sub-Stream
- Image Settings: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software
- Image Enhancement: BLC/3D DNR/Prevent Overexposure to Infrared Light
- Video Bit Rate:
1) Main Stream: 256 Kbps to 4Mbps
2) Sub-Stream: 64 Kbps to 512 Kbps
SMART FEATURE-SET
- Smart Event: Area Intrusion Detection, Line-Crossing Detection, Human Detection
- Basic Event: Motion Detection, Camera Tampering Detection, Exception (illegal login)
- Linkage Method: Trigger Notification: ONVIF, HTTPS
- Region of Interest: 1 Region
INTERFACES
- Network Interface: 1 x RJ45 10/100M Self-Adaptive Ethernet Port
- Audio Input: Built-in Microphone
- Audio Output: Built-in Speaker
- Button: Reset Button
- On-board Storage: Built-In Memory Card Slot, Support Micro-SD Card up to 256GB (memory card is not included)
- Material: Plastic

What's in the box
1 x C340-W-4
1 x Power Adapter
1 x Waterproof Cable Attachments
1 x Mounting Accessories set
1 x Quick Start Guide
