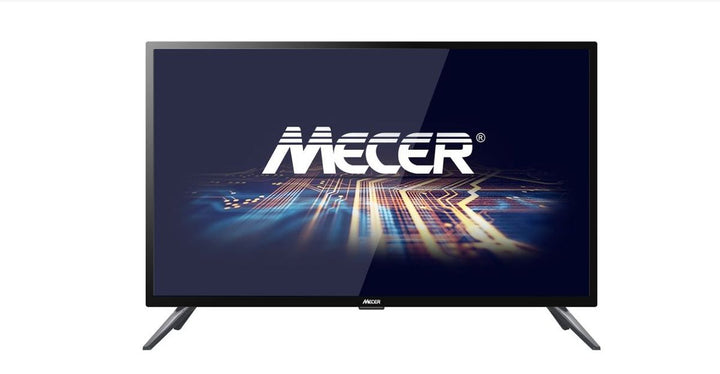

Mecer 32" 16:9 HD Ready LED Panel Monitor
Mecer:
- Mecer 32” HD LED Display
- Product Code: 32L86
- EAN Code: 32L86
Technical specifications:
- Master Unit: 32”
- Max. Resolution: 1366 x 768
- Best Resolution: 1360 x 768@60Hz
- Power Supply: 100-240VAC 60/50Hz
- Power Consumption of Speaker: 6W+6W
- Operating environment
- Temperature: 5°C – 40°C
- RH: 10% - 85%
- Atmospheric pressure: 86kPa – 106kPa
- Storage environment
- Temperature: -20°C – 55°C
- RH: 5% - 95%
- Atmospheric pressure: 86kPa – 106kPa
- Dimensions: LxWxH (mm3) and Weight
- Excluding base (Unpacking): 732 x 76 x 432 mm
- Including base (Unpacking): 732 x 174 x 484 mm
- (Packing): 835 x 140 x 514 mm
Weight
- Net weight: 4kg
- Gross Weight: 5.4 kg
Technical Specifications for LED Display:
1. AV Video input: 75 ?, 1±0. 1Vp-p, RCA terminal
2. AV Audio input: 20K ?, 0.2 – 2Vrms.
3. HDMI video input: 480i, 480P, 576i, 576P, 720P, 1080i, 1080P
VGA display Mode:
VGA:
- Resolution: 720x400 / 640x480
- Refresh rate: 70Hz / 60Hz
SVGA:
- Resolution: 800x600
- Refresh rate: 60Hz
XGA:
- Resolution rate: 1024x768
- Refresh rate: 60Hz
WXGA:
- Resolution rate: 1360x768
- Refresh rate: 60Hz
- Recommended model: 1360x768@60Hz
- Power Management
- Normal Working Mode
- Power Consumption: ?55W
- Standby Mode
- Power Consumption: ?0.5W
What's in the box
1 x The LED Display
1 x User Manual
1 x Remote control
1 x Power Cord (or attached to LED Display)
