Description
General
- Product Dimension (W × H × D)174.82 mm × 96.45 mm × 181.06 mm (6.88"× 3.80"× 7.13")
- Package Dimension (W × H × D)231 mm × 203 mm × 51 mm (9.09"× 7.99"× 2.01")
- Net Weight0.134 kg (0.295 lb)
- Packing ListWireless Router x 1, Ethernet cable × 1, Quick installation guide × 1
- Packing MethodSingle pack
- Working Temperature0 ℃ to 40 ℃ (32 ℉ to 104 ℉)
- Working Humidity10% to 90% RH non-condensing
- Storage Temperature-40 ℃ to 70 ℃ (-40 ℉ to 158 ℉)
- Storage Humidity5% to 90% RH non-condensing
- Installation ModeDesktop installation
- Max. Power Consumption≤ 5.4 W
- Gross Weight0.634 kg (1.398 lb)
Wireless Parameter
- Data Rate2.4 GHz: 300 Mbps
- Wireless StandardIEEE 802.11b/g/n @2.4 GHz
- Transmitting Power18 dBm
- Wireless PerformanceBeamforming supported
-
Receiving Sensitivity
58 ± 2 dB@AC80 -MCS9
84 ± 2 dB@AC80 -MCS0
- Antenna2 high gain antennas
Hardware Parameter
- Network Interface4 × RJ45, 10/100 Mbps auto-negotiation
- LED IndicatorLED indicator
- ResetReset button
- Power Supply Method9 VDC, 1 A power adapter power supply
- Power Specifications9 VDC, 1 A
Software Function
-
Application function
Wireless Router Mode, Wireless Repeater Mode, Client + AP, WISP, and AP Mode supported
DHCP Server supported
Guest Network Configuration supported
Signal Adjustment supported
WiFi Schedule supported
- Security ModeWPA-PSK/WPA2-PSK, WPA/WPA2
- Security MechanismHide SSID
- Management MethodWeb
- UpgradeWeb Update and Upgrade
- System LogSystem log

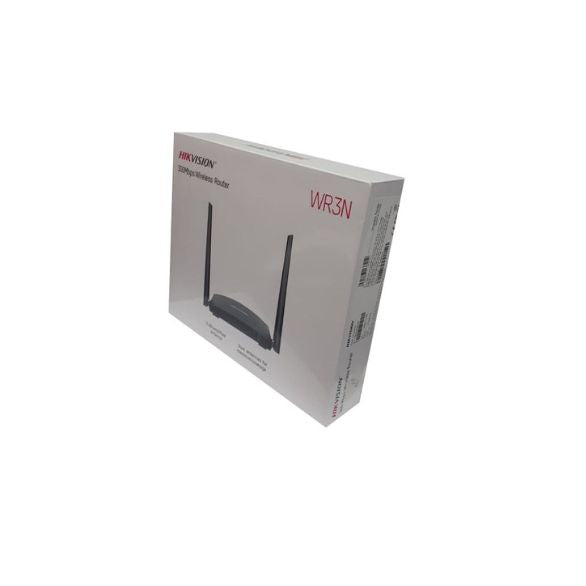

What's in the box
1 X Wireless Router
1 X Power Supply
1 X Ethernet Cable
1 X Quick Start Guide

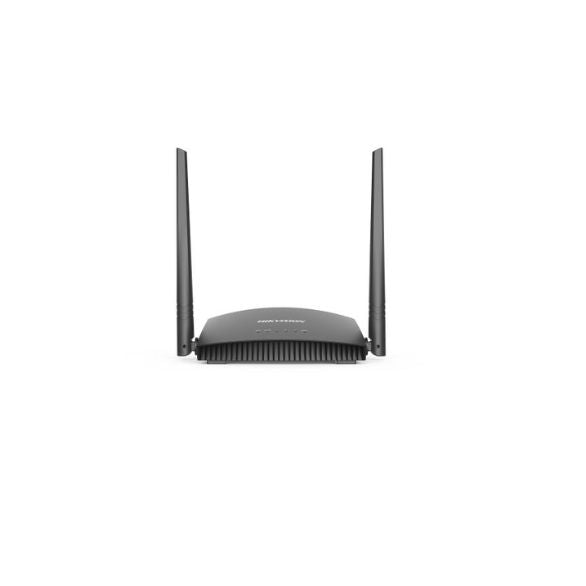

Hikvision DS-3WR3N 300Mbps Wireless Router
