Description
Hikvision has designed, manufactured, and perfected this premium quality Power Supply Unit specifically for use in CCTV applications. It provides stable power with adjustable modes dependent on the length of the cable. It is proven to be far superior to the conventional non-branded power supplies used on CCTV installations.
Features:
Multi-channel SMPS
60 W, 12 VDC/1 A per channel
Over current/short circuit/over voltage protection
Good EMC performance
Compact size; applicable to cameras
150 to 285 VAC wide voltage input
Specifications:
Appearance: White
Dimension: 144 mm × 109.5 mm × 33 mm (5.67? × 4.31? × 1.30?)
Operating Conditions: 0°C to 40°C (32°F to 104°F), Humidity: 10% to 95% (non-condensing)
LED Indicator: Green
Input: 150 to 285 VAC, 47 Hz to 63 Hz
Output: 12 VDC/1 A per channel
Ripple & Noise 150 MVp-P: 0.15 Vp-p (150 mV)
AC Input Connector: C8
DC Output Connector: DC Plug: grid terminal
Storage Conditions: -40°C to 80°C (-40°F to 176°F), Humidity: 5% to 95% (non-condensing)
Cable Length Compensation:
Normal: 12 VDC
Long: 13.5 VDC
Ex-Long: 15 VDC
What's in the box

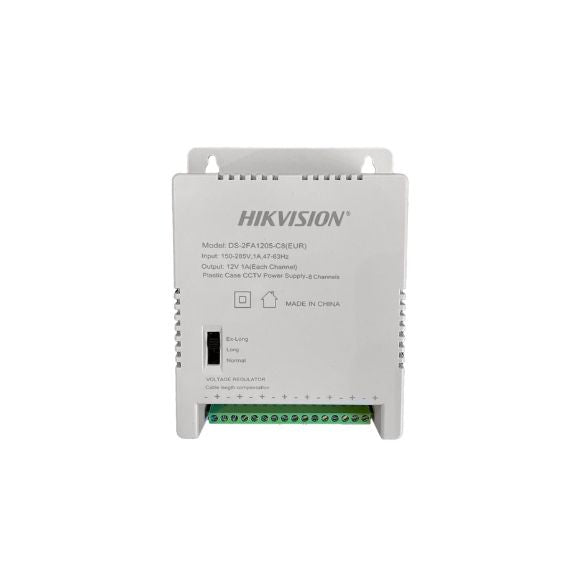

1 x Hikvision 8-Channel Power Supply
1 x Power Cable
