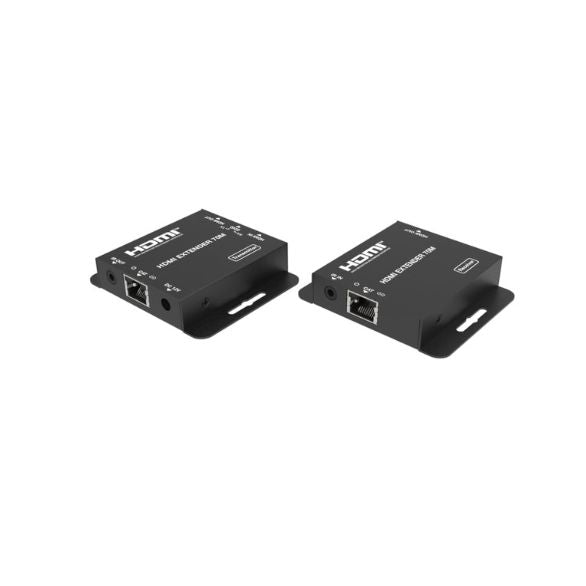

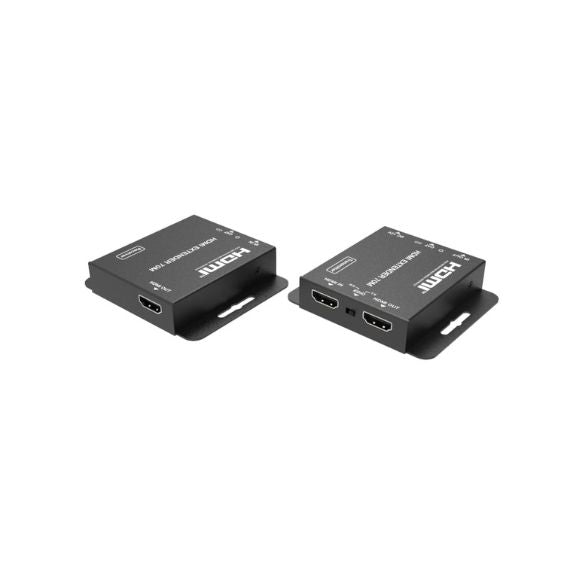

HDCVT 70m HDMI Extender with IR
The HDCVT HDMI Extender with IR Control can extend your high definition video/audio signal and IR control signal up to 70m for 1080p resolution, and up to 40m for 4K30 resolution via a single CAT6 cable. The high-quality construction allows you to achieve zero delays, as well as uncompressed long-distance transmission between the transmitter and receiver. This extender with HDMI loop output can also be cascaded to the next extender, supporting resolutions of up to 4K @ 30Hz. For additional versatility, it supports the EDID copy function as well (you can choose local or remote EDID). To top it all off it also supports high-quality audio formats like PCM7.1, Dolby True HD, DTS HD. This product can be widely used in multimedia conference halls, TV teaching or with large-screen displays.
Features:
-
- HDMI 1.4, HDCP 1.4 and DVI 1.0 Compliant
- Support Video Resolution up to 4K2K@30Hz YUV 4:4:4
- CAT6: 230ft/70m for 1080p, 131ft/40m for 4K30
- CAT5E: 197ft/60m for 1080p, 115ft/35m for 4K30
- Support Copying EDID from Receiver Display or Loop Out Display
- Allow for Cascading via additional HDMI loop out port
- Support one-way POC functionality (from transmitter to receiver)
- One-way IR signal transmission
Technical Specifications
|
HDMI Compliance: |
HDMI 1.4 |
| HDMI Compliance: | HDCP 1.4 |
|
Video Bandwidth: |
10.2Gbps |
|
Video Resolution: |
Up to 4K@30Hz |
| Audio Support |
Up to 7.1CH HD audio |
| Input TMDS Signal: |
3.3 volts |
| Input DDC Signal: |
5.0 volts/P-P |
| Human Body model: |
+/- 8 kV (air-gap discharge) +/- 4 kV (contact discharge) |

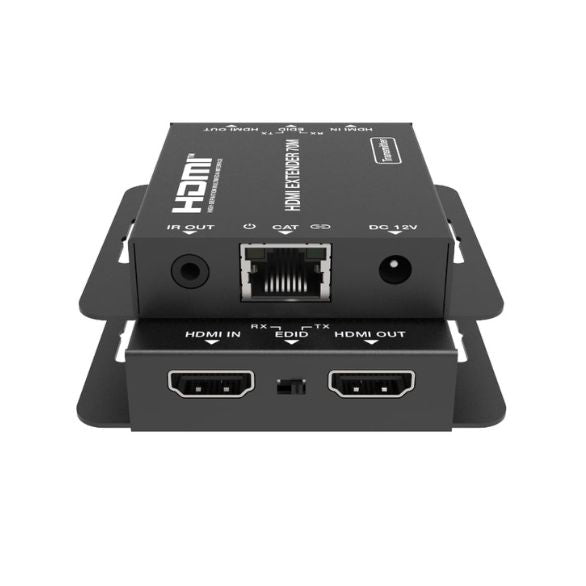

| Transmitter Input: |
1 x HDMI Type A [19-pin female] |
| Transmitter Output: |
1 x HDMI Type A [19-pin female] 1 x IR OUT [3.5mm Stereo Mini-jack] 1 x CAT OUT [RJ45, 8-pin female] |

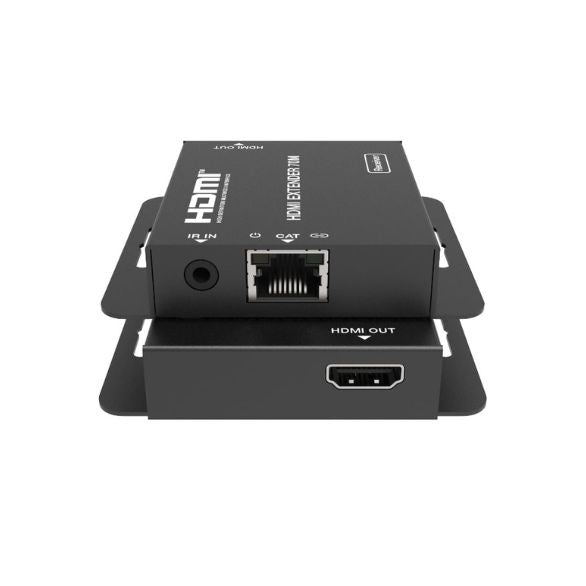

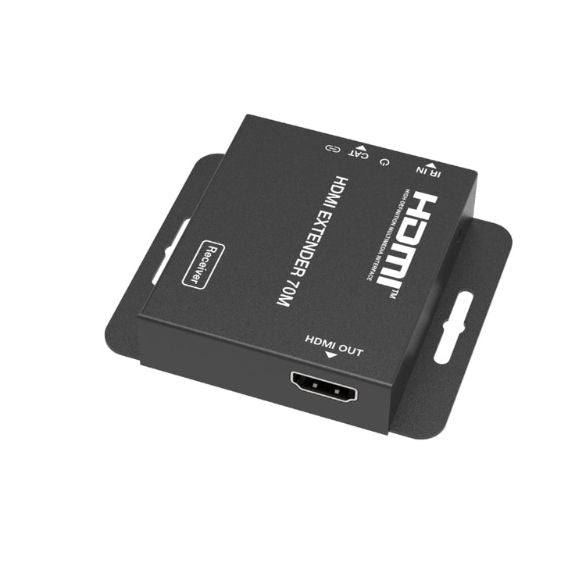

| Receiver Input: |
1x IR IN [3.5mm Stereo Mini-jack] 1x CAT IN [RJ45, 8-pin female] |
| Receiver Output: |
1x HDMI Type A [19-pin female] |
| Housing: |
Metal Enclosure |
| Colour: |
Black |
| Power Supply | 12V/1A DC |
What's in the box
- HDCVT HDMI 70M Extender Receiver x1
- HDCVT HDMI 70M Extender Transmitter x1
- IR Blaster Cable x1
- IR Receiver Cable x1
- 12V/1A DC Power Adapter x1
- User Manual x1
