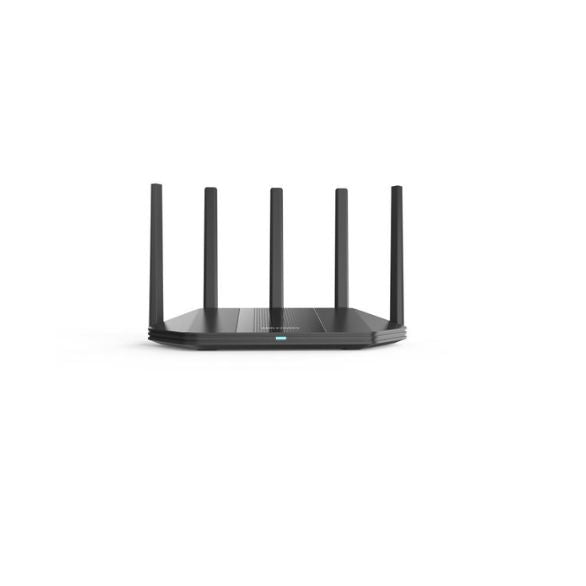

DS-3WR18X AX1800 Hikvision Dual Band Gigabit Wi-Fi 6 Router
Tax included.
Description
Hikvision DS-3WR18X AX1800 Wi-Fi 6 Wireless Router
- 1800Mbps Wi-Fi 6
- Wired Wireless Dual Gigabit
- Dual Band in One and 5G First
-
APP Management
The DS-3WR18X is a high-performance wireless router designed to meet the demands of modern home and small office networks. Combining robust wireless technology with user-friendly features, the DS-3WR18X offers reliable connectivity, fast data transfer speeds, and enhanced network security.
| General Specifications | |
| Product Dimension (W × H × D) | 281.7 mm × 145.0 mm × 204.1 mm |
| Package Dimension (W × H × D) | 365 mm × 340 mm × 73 mm |
| Net Weight | 0.40 kg |
| Packing Method | Single pack |
| Working Temperature | 0 ℃ to 40 ℃ (32 ℉ to 104 ℉) |
| Working Humidity | 10% to 90% RH non-condensing |
| Storage Temperature | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉) |
| Storage Humidity | 5% to 95% RH non-condensing |
| Installation Mode | Desktop installation |
| Max. Power Consumption | ≤ 10 W |
| Gross Weight | 0.790 kg |
| Wireless Parameter | |
| Data Rate | ≤ 1800 Mbps | 5GHz: 1201 Mbps | 2.4GHz: 574 Mbps |
| Wireless Standard | IEEE 802.11a/n/ac/ax @ 5GHz | IEEE 802.11b/g/n/ax @ 2.4GHz |
| Transmitting Power | CE: | ＜20 dBm (2.4GHz) | ＜23 dBm (5GHz) |
| Wireless Performance | MU-MIMO supported<br>TxBeamforming supported |
| Receiving Sensitivity | 5GHz: | -89 dBm @ HE80-MCS0 | -60 dBm @ HE80-MCS11 | 2.4GHz: | -93 dBm @ HT40-MCS0 | -73 dBm @ HT40-MCS7 |
| Antenna | 5 high gain antennas |
| Hardware Parameter | |
| Network Interface | 1 × 10/100/1000 Mbps Adaptive WAN Port<br>3 × 10/100/1000 Mbps Adaptive LAN Ports |
| LED Indicator | LED indicator |
| Reset | Reset button |
| Power Supply Method | Power Supply Adapter |
| Power Specifications | DC 12 V, 1 A |
| Software Function | |
| Application Function | Routing Mode, Wireless Relay Mode, Wired Bridge Mode supported | DHCP Server supported | Guest Network Configuration supported | Signal Adjustment supported | WiFi Schedule supported | Daylight Saving Time supported [ VLAN, WAN Self-Adaption, IPv6,Time Synchronization, Quick Diagnosis, PPPoE, DHCP, Support accessing the Internet through static IP mode |
| Security Mode | WPA2-PSK, WPA/WPA2-PSK, WPA2-PSK/WPA3-SAE supported |
| Security Mechanism | Support fast and secure WPS connection | Support hiding wireless network name | Support controlling terminal network connection | Support firewalls, Login Authentication, VPN Client, Port Mapping DMZ, UPNP |
| Management Method | Web, HPP, HC |
| Upgrade | Web, App Update and Upgrade |
| System Log | System log |
What's in the box
1 x Wireless Router
1 x Power Supply
1 x Ethernet Cable
1 x Quick Start Guide
