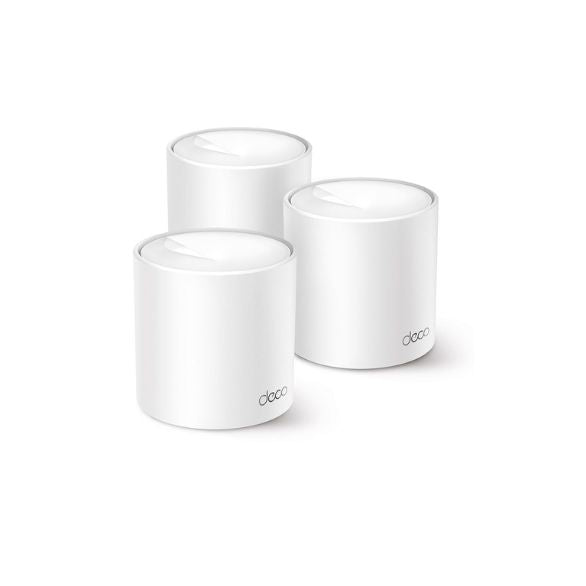

Deco X10 AX1500 Whole Home Mesh Wi-Fi 6 System TP-Link
AX1500 Whole Home Mesh Wi-Fi 6 System
- Faster Connections: Wi-Fi 6 speeds up to 1,500 Mbps—1,201 Mbps on 5 GHz and 300 Mbps on 2.4 GHz.†
- Connect More Devices: OFDMA and MU-MIMO technology quadruple capacity to enable simultaneous transmission to more devices.△
- Boosted Seamless Coverage: Achieve seamless whole home coverage with a clearer and stronger whole home Wi-Fi signal generated by Wi-Fi 6.‡
- Ultra-Low Latency: Greater reduction in latency enables more responsive gaming and video chatting.
- One Unified Network: Multiple units form a whole-home network that auto-selects the best connection as you move around your home.
- Robust Parental Controls – Limit online time and block inappropriate websites according to unique profiles you create for each family member.*
- Setup Made Easier Than Ever: The Deco app walks you through setup step-by-step.
WIRELESS
- Standards: Wi-Fi 6
- IEEE 802.11ax/ac/n/a 5GHz
- IEEE 802.11n/b/g 2.4GHz
- Wi-Fi Speeds: AX1500
- 5GHz: 1201Mbps (802.11ax)
- 2.4GHz: 300Mbps (802.11n)
Wi-Fi Range (3 - 5 Bedroom Houses / 3 units):
-TP-Link Mesh Technology: Optional Ethernet backhaul work together to link DECO units to provide seamless coverage.
- 2 x Antennas (Internal): Multiple antennas form a signal-boosting array to cover more directions and large areas.
- Beamforming: Concentrates wireless signal strength towards clients to expand Wi-Fi range.
Wi-Fi Capacity: High
-Dual-Band: Distribute devices to different bands for optimal performance.
-2x2 MU-MIMO: Simultaneously communicates with multiple MU-MIMO clients.
-OFDMA: Simultaneously communicates with multiple Wi-Fi 6 clients.
-4 Streams: More than enough bandwidth for connected devices.
- Working Modes: Router Mode, Access Point Mode
HARDWARE
- Ethernet Ports: 2 x Gigabit Ports Per DECO Unit, Supports WAN/LAN auto-sensing
- Buttons: Reset Button
SECURITY
- Wi-Fi Encryption: WPA-Personal, WPA2-Personal, WPA3-Personal
- Network Security: SPI Firewall, Access Control
- Guest Network: 1 x 5GHz Guest Network, 1 x 2.4GHz Guest Network
SOFTWARE
- Protocols: IPv4, IPv6
- Parental Controls:
1/ Parental Controls: Custom Profiles, Professional Content Filter Library, Family Time, Bedtime, Off Time, Time Rewards, Family Online Time Ranking, Pause the Internet, Weekly and Monthly Reports
- WAN Types: Dynamic IP, Static IP, PPPoE, PPTP, L2TP
- Quality of Service: QoS by Device
- Cloud Service: OTA Firmware Upgrade, TP-Link ID, DDNS
- NAT Forwarding: Port Forwarding, UPnP
- IPTV: IGMP Proxy, IGMP Snooping, Bridge, Tag VLAN
- DHCP: Address Reservation, DHCP Client List, Server
- DDNS: TP-Link
- Management: DECO App
TEST DATA
- Wi-Fi Transmission Power:
1/ CE:
a) <20 dBm (2.4GHz)
b) <30 dBm (5GHz)
2/ FCC:
a) <30 dBm (2.4GHz)
b) <30 dBm (5GHz)
OTHERS
- System Requirements: Android 5.0 or later, iOS 9.0 or later
Note: The minimum system requirements will be updated alongside updates to the app, subject to official website information.
- Certifications : CE, FCC, RoHS, JPA, JRF, VCCI, NCC, BSMI
- Operating Temperature: 0 Degree Celsius - 40 Degree Celsius
- Storage Temperature: -40 Degree Celsius - 60 Degree Celsius
- Operating Humidity: 10% - 90% non-condensing
- Storage Humidity: 5% - 90% non-condensing

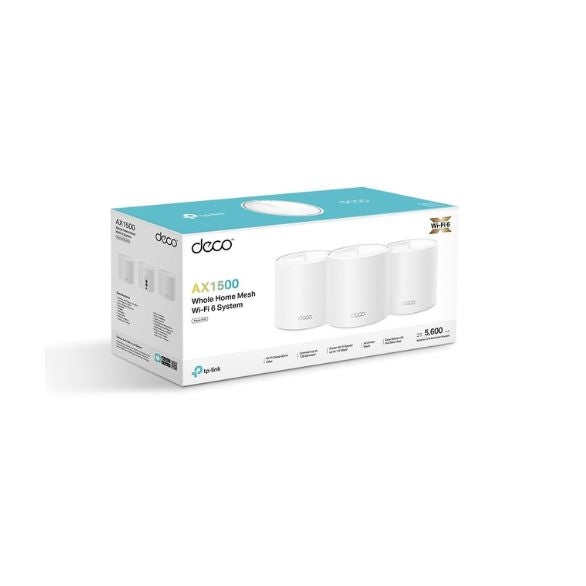

What's in the box
1 x DECOX10 (3-units)
3 x Power Adapters
1 x RJ45 Ethernet Cable
1 x Quick Installation Guide
