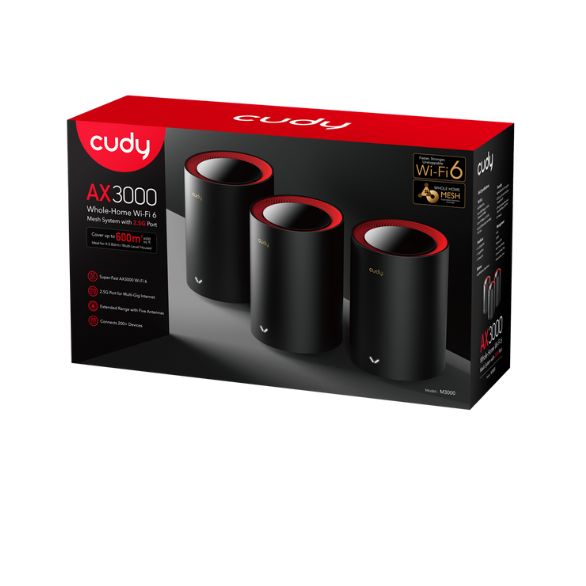

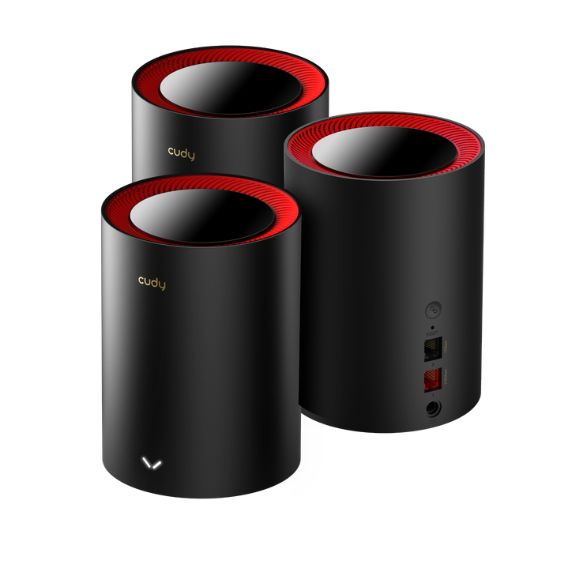

Cudy AX3000 2.5G Mesh Wi-Fi 6 System M3000 1.0 (3 Pack)

R 2,599.00
Tax included.
Add to WishlistCompare
SKU:
Categories: Cudy Routers, Routers, Spring Sale
Tags: Cudy AX3000, Cudy Mesh, Wi-Fi-6
Ask a Question
Description

Cudy AX3000 2.5G Mesh Wi-Fi 6 System M3000 1.0

A mesh WiFi 6 system with five antennas to provide a super-fast network for large homes with 4K streaming and gaming demands. Suitable for internet access up to 2.5 Gbps.

 See full specifications

Model Version M3000 1.0
CPU CPU Details 1.3 GHz Dual-Core, ARM Cortex-A53
Memory/Storage Flash/ROM 128 MB (1 Gbit) NAND
DDR/RAM 256 MB (2 Gbit) DDR3
Wireless 5 GHz Wi-Fi Speed 2402 Mbps
2.4 GHz Wi-Fi Speed 574 Mbps
5 GHz Wi-Fi Streams 2T2R (2×2 MIMO)
2.4 GHz Wi-Fi Streams 2T2R (2×2 MIMO)
Wi-Fi Antennas 5× Internal
FEM or PA/LNA
  • 5 GHz: 3× Internal
  • 2.4 GHz: 2× Internal
Beamforming True
Range Performance Max: 220 m (722 ft)
Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions.
Wall Performance Two wooden walls with thickness < 10 cm (4'')
One concrete wall with thickness < 20 cm (7'') or two concrete walls with thickness < 10 cm (4'')
Indoor Coverage Reference 2 Pack: 200 m² (2100 sq ft)
3 Pack: 270 m² (2900 sq ft)
Applied to wireless backhaul situation. Place in the center of each floor, with a maximum of three obstacles to each room.
Interfaces 2.5G RJ45 Ports 1
Gigabit RJ45 Ports 1
Ethernet Notes The 2.5G port is the WAN port, the Gigabit port is LAN port
LED
  • System
  • Speed/Link/ACT of Ethernet Port
Physical Buttons
  • WPS Button
  • Reset Button
Power Input DC Jack
Power Power Methods DC
DC Input 12V 1A
Power Adapter Input: 100 ~ 240 V, 50/60 Hz AC
Output: 12V 1A DC
Max Power Consumption (W) 11.5W
Idle Power Consumption (W) 4.2W
Reliability Environment
  • Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
  • Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
  • Humidity: 10% ~ 90% non-condensing
  • Storage Humidity: 5% ~ 95% non-condensing
Certifications FCC, CE
Mechanical Installation Desktop
Dimension Φ110×154.5 mm
Φ4.33×6.08 inches
Product Weight 360 g (12.7 oz.)
Package Content
  • M3000
  • Power Adapter
  • Ethernet Cable
  • Installation Guide
Ordering Information Retail Package Weight
  • 1-Pack | EU / US: 680 g (23.99 oz.)
  • 3-Pack | EU / US: 1500 g (52.91 oz.)
  • 2-Pack | EU / US: 1100 g (38.8 oz.)
  • 3-Pack | EU / US: 1827 g (64.45 oz.)
Retail Package Dimension
  • 1-Pack:
    145×130×265 mm
    5.71×5.12×10.43 inches
  • 2-Pack:
    330×130×265 mm
    12.99×5.12×10.43 inches
  • 3-Pack:
    380×130×265 mm
    14.96×5.12×10.43 inches
Units per Carton
  • 1-Pack: 16
  • 2-Pack: 8
  • 3-Pack: 4
Carton Dimension
  • 1-Pack: 57×56×26 cm
    22.44×22.05×10.24 inches
  • 2-Pack: 55×54.5×35.3 cm
    21.65×21.46×13.9 inches
  • 3-Pack: 53.6×40×28.7 cm
    21.1×15.75×11.3 inches
Carton Gross Weight
  • 1-Pack | EU / US: 12.2 kg (26.9 lbs)
  • 3-Pack | EU / US: 9.6 kg (21.16 lbs)
  • 2-Pack | EU / US: 12 kg (26.46 lbs)
  • 3-Pack | EU / US: 8.2 kg (18.08 lbs)
Carton Net Weight
  • 1-Pack | EU / US: 10.9 kg (24.03 lbs)
  • 3-Pack | EU / US: 8.5 kg (18.74 lbs)
  • 2-Pack | EU / US: 11.5 kg (25.35 lbs)
  • 3-Pack | EU / US: 7.3 kg (16.09 lbs)

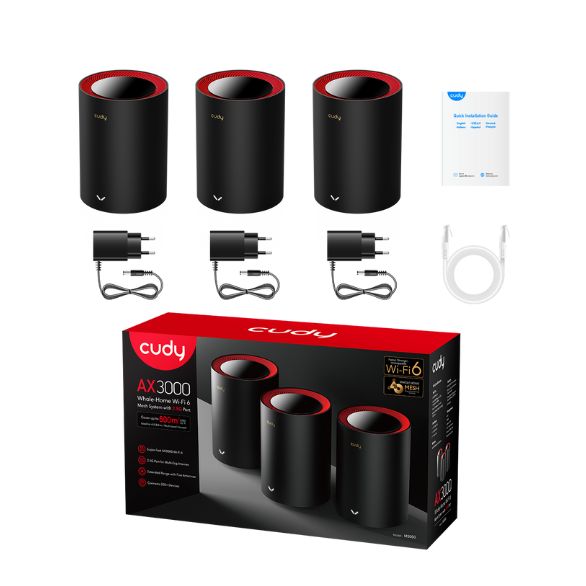

What's in the box
3 x Cudy AX3000 2.5G Mesh Wi-Fi 6 System
3 x Power Adapter
3 x RJ45 Ethernet Cable
1 x Quick Installation Guide
