Cudy AC1200 Wi-Fi Router WR1200 2.0

R 549.00 R 449.00
Tax included.
Description

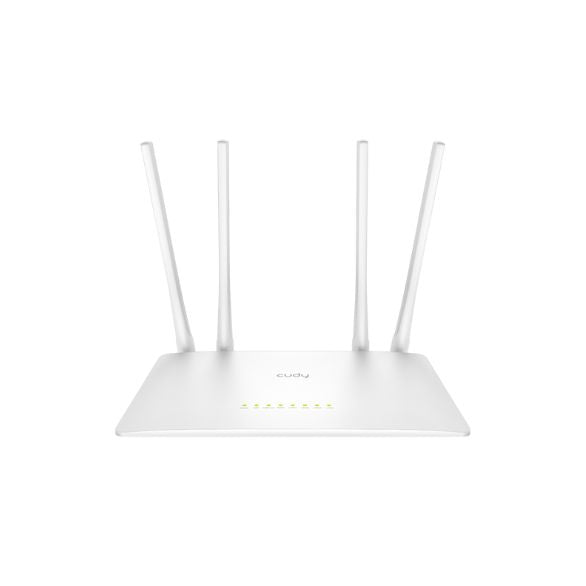

Cudy AC1200 Wi-Fi Router WR1200 2.0

A dual-band WiFi router ideal for streaming smooth video playback with a maximum of 100 Mbps internet access, featuring MU-MIMO and App control.

 See full specifications

Model Version WR1200 2.0
CPU CPU Details 580 MHz Single-Core, MIPS24KEC
Memory/Storage Flash/ROM 8 MB (64 Mbit ) NOR
DDR/RAM 64 MB (512 Mbit) DDR2
Wireless 5 GHz Wi-Fi Speed 867 Mbps
2.4 GHz Wi-Fi Speed 300 Mbps
5 GHz Wi-Fi Streams 2T2R (2×2 MIMO)
2.4 GHz Wi-Fi Streams 2T2R (2×2 MIMO)
Wi-Fi Antennas 4× Fixed
Beamforming True
Range Performance Max: 170 m (558 ft)
Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions.
Wall Performance Two wooden walls with thickness < 10 cm (4'')
One concrete wall with thickness < 20 cm (7'')

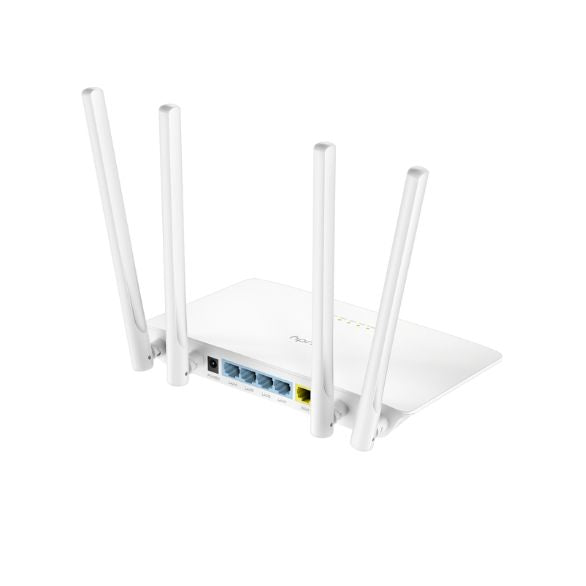

Interfaces 10/100 Mbps RJ45 Ports 5
Ethernet Notes 1× WAN port, the rest are LAN ports
LED
  • Power
  • Internet
  • Speed/Link/ACT of Ethernet Port
  • Wi-Fi
Physical Buttons
  • WPS Button
  • Reset Button
Power Input DC Jack
Power Power Methods DC
DC Input 12V 1A
Power Adapter Input: 100 ~ 240 V, 50/60 Hz AC
Output: 12V 1A DC
Reliability Environment
  • Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
  • Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
  • Humidity: 10% ~ 90% non-condensing
  • Storage Humidity: 5% ~ 95% non-condensing
Certifications FCC, CE
Mechanical Installation
  • Desktop
  • Wall-mount
Dimension 220×135×30 mm
8.66×5.31×1.18 inches
Product Weight
  • EU: 259 g (9.14 oz.)
  • ZH: 258.8 g (9.13 oz.)
Package Content
  • WR1200
  • Power Adapter
  • Ethernet Cable
  • Installation Guide
Ordering Information Retail Package Weight
  • EU: 651 g (22.96 oz.)
  • ZH: 625.0 g (22.05 oz.)
Retail Package Dimension 290×250×64 mm
11.42×9.84×2.52 inches
Units per Carton 16
Carton Dimension 53.8×51.6×31.3 cm
21.18×20.31×12.32 inches
Carton Gross Weight
  • EU: 11.9 kg (26.23 lbs)
  • ZH: 11.2 kg (24.69 lbs)
Carton Net Weight
  • EU: 10.4 kg (22.93 lbs)
  • ZH: 10.0 kg (22.05 lbs)

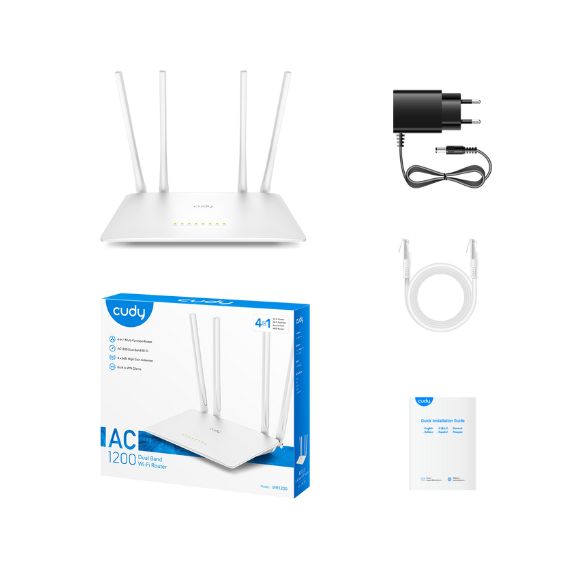

What's in the box
1 x Cudy AC1200 Wi-Fi Router
1 x Power Adapter
1 x RJ45 Ethernet Cable
1 x Quick Installation Guide
