Cudy AC1200 Gigabit Mesh Wi-Fi Router WR1300 3.0

R 799.00 R 649.00
Tax included.
Description

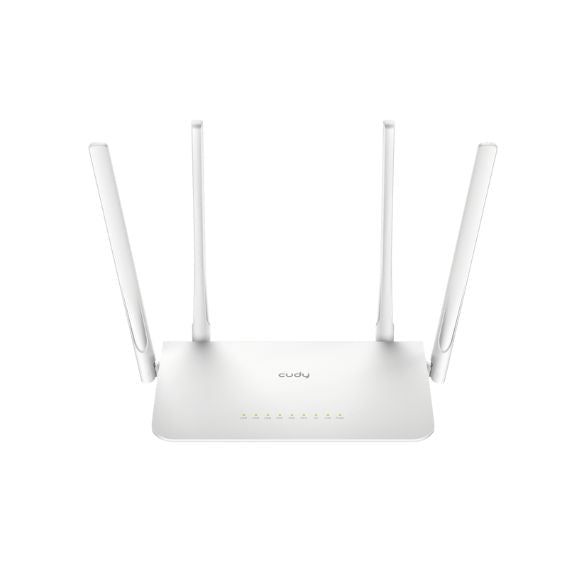

Cudy AC1200 Gigabit Mesh Wi-Fi Router WR1300 3.0

A dual-band AC1200 WiFi router ideal for smooth 4K playback, gaming, a connecting to a max 1000 Mbps internet access, featuring Cudy Mesh, app control, VPN, and MU-MIMO.

 See full specifications

Model Version WR1300 3.0
CPU CPU Details 880 MHz Dual-Core, MIPS1004Kc
Memory/Storage Flash/ROM 16 MB (128 Mbit) NOR
DDR/RAM 128 MB (1 Gbit) DDR3
Wireless 5 GHz Wi-Fi Speed 867 Mbps
2.4 GHz Wi-Fi Speed 300 Mbps
5 GHz Wi-Fi Streams 2T2R (2×2 MIMO)
2.4 GHz Wi-Fi Streams 2T2R (2×2 MIMO)
Wi-Fi Antennas 4× Fixed
FEM or PA/LNA
  • 5 GHz: 2× Internal
  • 2.4 GHz: 2× Internal
Beamforming True
Range Performance Max: 170 m (558 ft)
Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions.
Wall Performance Two wooden walls with thickness < 10 cm (4'')
One concrete wall with thickness < 20 cm (7'')

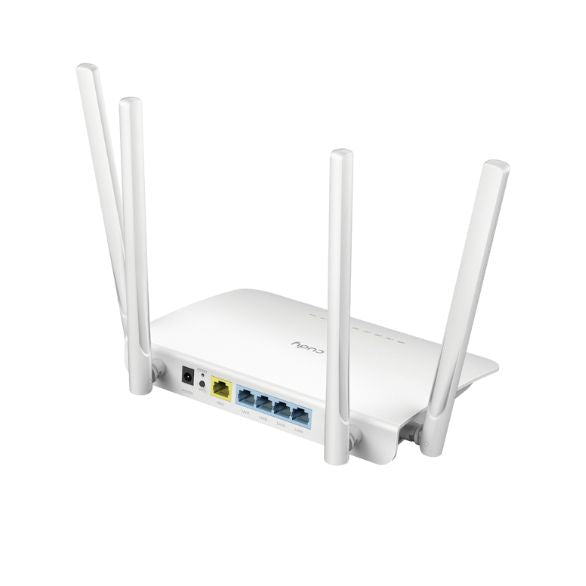

Interfaces Gigabit RJ45 Ports 5
Ethernet Notes 1× WAN port, the rest are LAN ports
LED
  • Power
  • 2.4 GHz Wi-Fi
  • 5 GHz Wi-Fi
  • WPS
  • Speed/Link/ACT of Ethernet Port
Physical Buttons
  • WPS Button
  • Reset Button
Power Input DC Jack
Power Power Methods DC
DC Input 12V 1A
Power Adapter Input: 100 ~ 240 V, 50/60 Hz AC
Output: 12V 1A DC
Max Power Consumption (W) 9.27W
Idle Power Consumption (W) 3.56W
Reliability Environment
  • Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
  • Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
  • Humidity: 10% ~ 90% non-condensing
  • Storage Humidity: 5% ~ 95% non-condensing
Certifications FCC, CE
Mechanical Installation
  • Desktop
  • Wall-mount
Dimension 210×144×31 mm
8.27×5.67×1.22 inches
Product Weight
  • EU / US: 319 g (11.25 oz.)
  • ZH: 318.4 g (11.23 oz.)
Package Content
  • WR1300
  • Power Adapter
  • Ethernet Cable
  • Installation Guide
Ordering Information Retail Package Weight
  • BR: 716 g (25.26 oz.)
  • EU / US: 727 g (25.64 oz.)
  • ZH: 666.4 g (23.51 oz.)
Retail Package Dimension 280×278×56 mm
11.02×10.94×2.2 inches
Units per Carton 20
Carton Dimension 59×58×30.3 cm
23.23×22.83×11.93 inches
Carton Gross Weight
  • BR: 15.7 kg (34.61 lbs)
  • EU / US: 16.2 kg (35.71 lbs)
  • ZH: 14.7 kg (32.41 lbs)
Carton Net Weight
  • BR: 14.3 kg (31.53 lbs)
  • EU / US: 14.5 kg (31.97 lbs)
  • ZH: 13.3 kg (29.32 lbs)

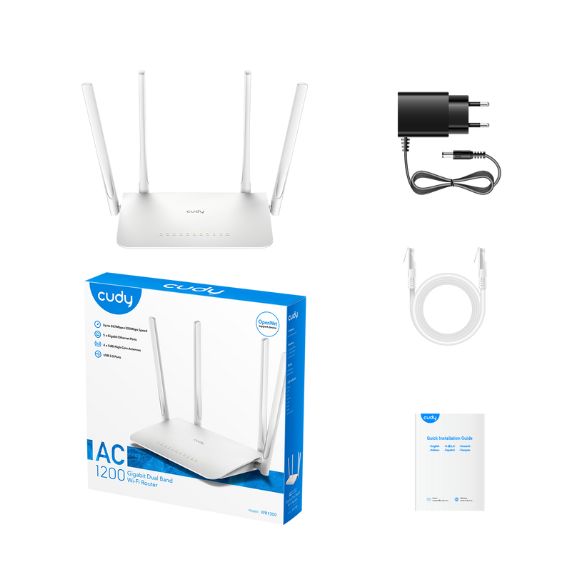

What's in the box
1 x Cudy AC1200 Gigabit Mesh Wi-Fi Router WR1300
1 x Power Adapter
1 x RJ45 Ethernet Cable
1 x Quick Installation Guide
