Cudy 4G AC1200 Wi-Fi Router LT500 2.0

R 999.00 R 899.00
Tax included.
Add to WishlistCompare
SKU:
Categories: Cudy Routers, Routers, Spring Sale
Tags: Cudy LT500
Ask a Question
Description

Cudy 4G AC1200 Wi-Fi Router LT500 2.0

A 4G WiFi router with one nano SIM slot and four Ethernet ports, providing easy-to-install flexible networks for home, office, surveillance, exhibitions, and RV scenarios.

 See full specifications

Model Version LT500 2.0
CPU CPU Details 580 MHZ Single-Core, MIPS24KEC
Memory/Storage Flash/ROM 16 MB (128 Mbit) NOR
DDR/RAM 128 MB (1 Gbit) DDR2
Cellular Cellular Standards 4G Cat. 4
Cellular Antennas 2× Fixed
SIM Options 1× Nano SIM Slot
Available Versions EU, US, AU
EU Version Cellular Suitable Region Europe, Middle East, Africa
Max DL Speed 150 Mbps (LTE-FDD), 130 Mbps (LTE-TDD)
Max UL Speed 50 Mbps (LTE-FDD), 30 Mbps (LTE-TDD)
Advanced DL 2×2 MIMO
Cellular Bands LTE-FDD: B1/3/5/7/8/20/28
LTE-TDD: B38/40/41
WCDMA: B1/5/8
US Version Cellular Suitable Region United States, Canada
Max DL Speed 150 Mbps
Max UL Speed 50 Mbps
Advanced DL 2×2 MIMO
Cellular Bands LTE-FDD: B2/4/5/12/13/14/66/71
WCDMA: B2/4/5
AU Version Cellular Suitable Region Latin America, Australia, New Zealand
Max DL Speed 150 Mbps (LTE-FDD), 130 Mbps (LTE-TDD)
Max UL Speed 50 Mbps (LTE-FDD), 30 Mbps (LTE-TDD)
Advanced DL 2×2 MIMO
Cellular Bands LTE-FDD: B1/2/3/4/5/7/8/28/66
LTE-TDD: B40
WCDMA: B1/2/4/5/8
GSM: B2/3/5/8
Wireless 5 GHz Wi-Fi Speed 867 Mbps
2.4 GHz Wi-Fi Speed 300 Mbps
5 GHz Wi-Fi Streams 2T2R (2×2 MIMO)
2.4 GHz Wi-Fi Streams 2T2R (2×2 MIMO)
Wi-Fi Antennas 2× Fixed
Beamforming True
FEM or PA/LNA
  • 5 GHz: 2× Internal
  • 2.4 GHz: 2× Internal
Range Performance Max: 130 m (427 ft)
Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions.
Wall Performance One wooden walls with thickness < 10 cm (4'')
One concrete wall with thickness < 10 cm (4'')
Interfaces Physical Buttons
  • WPS Button
  • Reset Button
10/100 Mbps RJ45 Ports 4
Ethernet Notes 1× RJ45 port is WAN/LAN configurable, and the rest are LAN ports
LED
  • System
  • Speed/Link/ACT of Ethernet Port
Power Input DC Jack
Power Power Methods DC
DC Input 12V 1A
Power Adapter Input: 100 ~ 240 V, 50/60 Hz AC
Output: 12V 1A DC
Reliability EMC ESD: Contact: 4kV; Air: 8kV
Environment Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5% ~ 90% non-condensing
Certifications FCC, CE
Mechanical Dimension 204.8×133.2×38.3 mm
8.06×5.24×1.51 inches
Product Weight 308 g (10.86 oz.)
Installation
  • Desktop
  • Wall-mount
Package Content
  • LT500
  • Power Adapter
  • Ethernet Cable
  • Installation Guide
Ordering Information Retail Package Weight
  • AU: 715 g (25.22 oz.)
  • EU: 714 g (25.19 oz.)
  • US: 740 g (26.1 oz.)
  • UK: 721 g (25.43 oz.)
Retail Package Dimension 340×275×60 mm
13.39×10.83×2.36 inches
Carton Net Weight
  • AU: 7.1 kg (15.65 lbs)
  • EU: 7.1 kg (15.65 lbs)
  • US: 7.4 kg (16.31 lbs)
  • UK: 7.2 kg (15.87 lbs)
Carton Gross Weight
  • AU: 8.0 kg (17.64 lbs)
  • EU: 8.7 kg (19.18 lbs)
  • US: 8.2 kg (18.08 lbs)
  • UK: 8.9 kg (19.62 lbs)
Carton Dimension 57×32.5×35.8 cm
22.44×12.8×14.09 inches

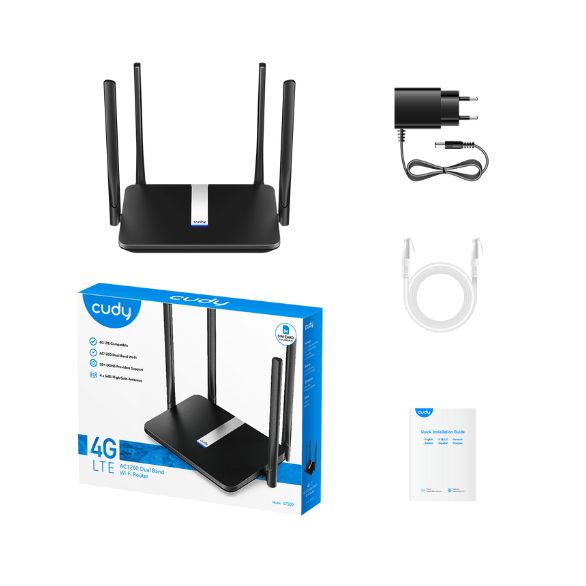

What's in the box
1 x Cudy LT500 4G LTE AC1200 Dual-Band Wi-Fi Router
1 x Power Adapter
1 x RJ45 Ethernet Cable
1 x Quick Installation Guide
