Cudy AX3000 2.5G Wi-Fi 6 Access Point AP3000 1.0

R 1,499.00 R 1,169.00
Tax included.
Add to WishlistCompare
SKU:
Categories: Cudy Routers, Range Extenders, Routers, Spring Sale
Tags: Cudy AP3000, Cudy AX3000
Ask a Question
Description

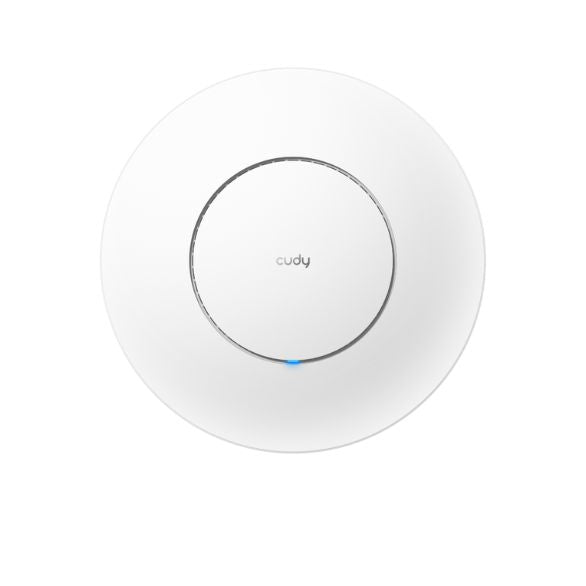

Cudy AX3000 2.5G Wi-Fi 6 Access Point AP3000 1.0

A wall/ceiling-mounted WiFi 6 AP, featuring large RAM and shielded 2.5G ports, designed for connecting transportation hubs, hotels, offices, lecture halls, and classrooms.

 See full specifications

Model Version AP3000 1.0
CPU CPU Details 1.3 GHz Dual-Core CPU
Memory/Storage Flash/ROM 256 MB (2 Gbit) NAND
DDR/RAM 512 MB (4 Gbit) DDR4
Wireless 5 GHz Wi-Fi Speed 2402Mbps
2.4 GHz Wi-Fi Speed 574 Mbps
5 GHz Wi-Fi Streams 3T3R (3×3 MIMO)
2.4 GHz Wi-Fi Streams 2T2R (2×2 MIMO)
Wi-Fi Antennas 5× Internal
FEM or PA/LNA
  • 5 GHz: 3× External
  • 2.4 GHz: 2× External
Beamforming True
Range Performance Max: 200 m (656 ft)
Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions.
Wall Performance Two wooden walls with thickness < 10 cm (4'')
One concrete wall with thickness < 20 cm (7'') or two concrete walls with thickness < 10 cm (4'')

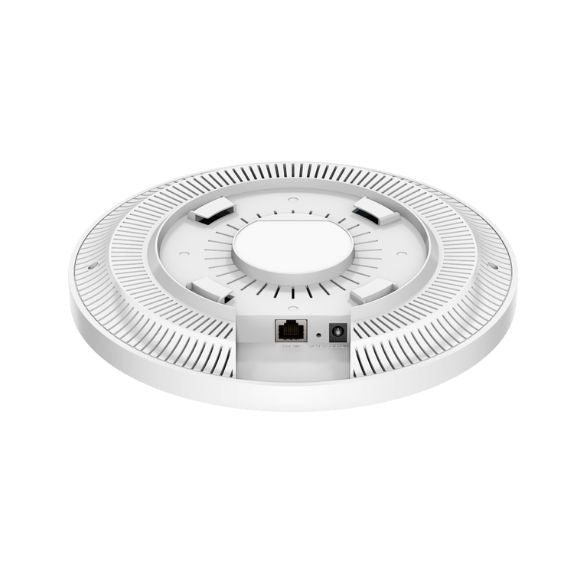

Interfaces 2.5G RJ45 Ports 1
Ethernet Notes Accepts PoE powering
LED System
Physical Buttons Reset Button
Power Input
  • DC Jack
  • PoE via Ethernet Port
Power Power Methods
  • DC
  • 802.3at/af PoE
  • Passive PoE
DC Input 12V 1.5A
Passive PoE Input 48 ~ 57V
Power Adapter AP3000 | DC Adapter in the box:
Input: 100 ~ 240 V, 50/60 Hz AC
Output: 12V 1.5A DC
AP3000_P | PoE Adapter in the box:
Input: 100 ~ 240 V, 50/60 Hz AC
Output: 48V Passive PoE
Max Power Consumption (W) 12 W (48 V PoE) 12 W (DC)
Idle Power Consumption (W) 6.1 W (48 V PoE) 6.1 W (DC)
Reliability Advanced Hardware Watchdog
EMC ESD: Contact: 4kV; Air: 8kV
Environment Operating Temperature: -10 ℃ ~ 60 ℃ (14 ℉ ~140 ℉)
Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5% ~ 90% non-condensing
Certifications FCC, CE

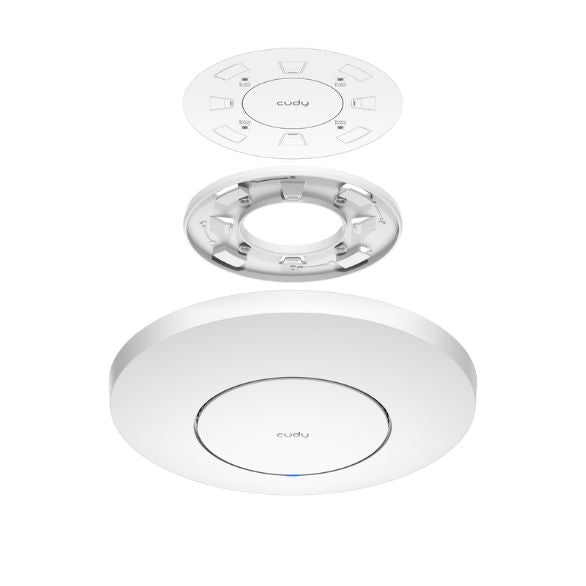

Mechanical Installation
  • Wall-mount
  • Ceiling-mount
Dimension Φ231.9×57.1 mm
Φ9.13×2.25 inches
Product Weight 494 g (17.43 oz.)
Package Content
  • AP3000
  • Power Adapter
  • Mounting Kit
  • Ethernet Cable
  • Installation Guide
Ordering Information Retail Package Weight
  • With PoE Adapter (_P) | EU: 1015 g (35.8 oz.)
  • With DC Adapter | EU: 941 g (33.19 oz.)
Retail Package Dimension 283×238×68 mm
11.14×9.37×2.68 inches
Units per Carton 20
Carton Net Weight
  • With PoE Adapter (_P) | EU: 20.3 kg (44.75 lbs)
  • With DC Adapter | EU: 18.8 kg (41.45 lbs)
  • With DC Adapter | UK: 19 kg (41.89 lbs)
Carton Gross Weight
  • With PoE Adapter (_P) | EU: 21.7 kg (47.84 lbs)
  • With DC Adapter | EU: 20.0 kg (44.09 lbs)
  • With DC Adapter | UK: 20.2 kg (44.53 lbs)
Carton Dimension 58×37.5×49.5 cm
22.83×14.76×19.49 inches

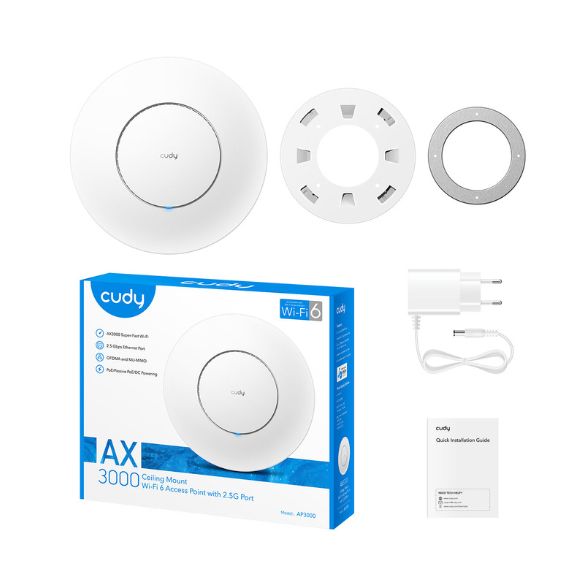

What's in the box
1 x Cudy AX3000 2.5G Wi-Fi 6 Access Point AP3000
1 x Power Adapter
1 x RJ45 Ethernet Cable
1 x Quick Installation Guide
